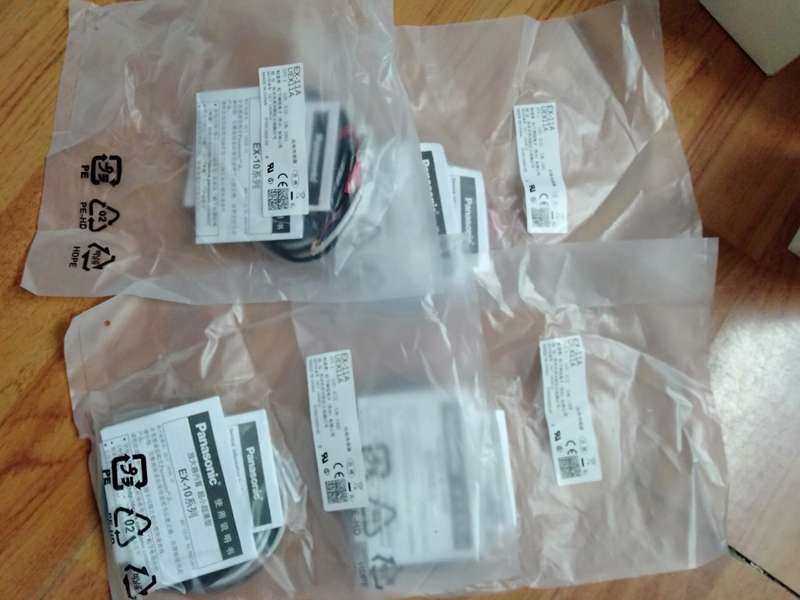

Thông số kỹ thuật Cảm biến Panasonic EX-11A:
- Sensing range: 150 mm
- Min sensing object: ø1 mm opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 150 mm 5.906 in)
- Supply voltage: 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
- Current consumption Emitter: 10 mA or less
- Receiver: 10 mA or less
- Output: NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current),1 V or less (at 16 mA sink current)
- Response time: 0.5 ms or less
- Protection: IP67 (IEC)
- Material Enclosure: Polyethylene terephthalate
- Cable: Cable length 2m, 3 wire
- Operating temperature range: -25 – 55 degrees C
- Weight: Net weight (each emitter and receiver): 20 g approx
- Gross weight: 50 g approx
- Brand: Panasonic
Dòng Model Cảm biến Panasonic:
- EX-11A (EX-11AD, EX-11P)
- EX-11EA (EX-11EAD, EX-11EP)
- EX-11B (EX-11BD EX-11P)
- EX-11EB (EX-11EBD EX-11EP)
Tudongvina.com cung cấp tất cả các loại Cảm biến EX trên thị trường. Liên hệ để tìm và nhận báo giá loại bạn đang cần.
Công ty chúng tôi chuyên cung cấp tất cả các loại vật tư – thiết bị dùng cho các công trình Công Nghiệp.
