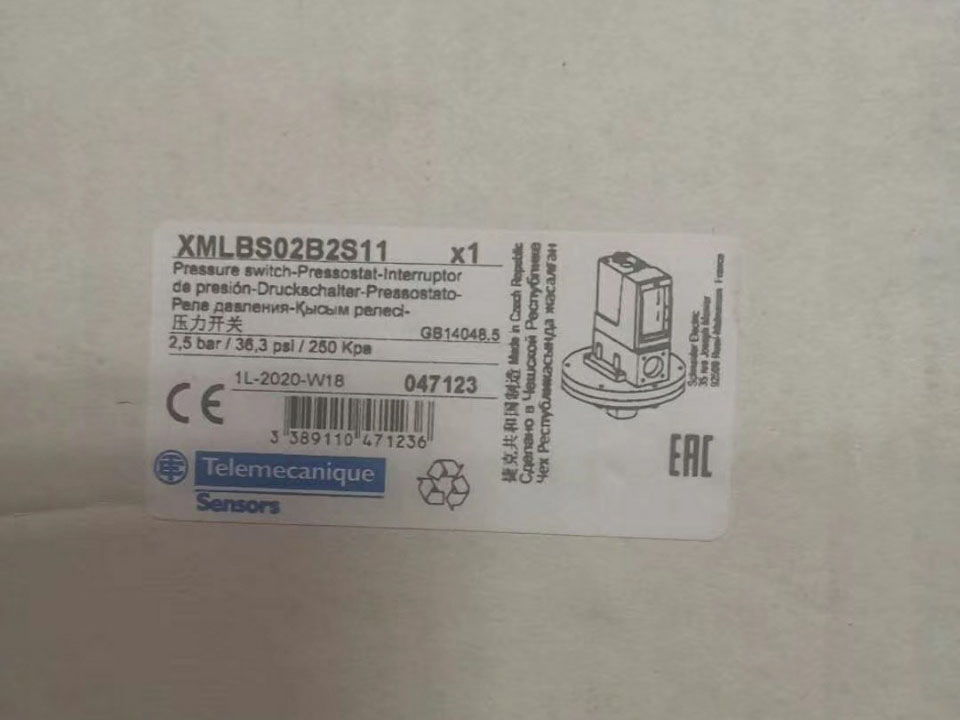

Model: XMLBS02B2S11
Other name: Pressure Switch
- Pressure switch XMLB 2.5 bar – adjustable scale 2 thresholds – 1 C/O
Thông số kỹ thuật:
range of product |
OsiSense XM
|
|
---|---|---|
product or component type |
Electromechanical pressure sensor
|
|
pressure sensor type |
Electromechanical pressure sensor
|
|
device short name |
XMLB
|
|
pressure sensor size |
2.5 bar
|
|
controlled fluid |
Air (0…160 °C)
Fresh water (0…160 °C) Hydraulic oil (0…160 °C) |
|
fluid connection type |
G 1/4 (female) conforming to ISO 228
|
|
electrical connection |
Screw-clamps terminals, 1 x 0.5…2 x 2.5 mm²
|
|
AWG gauge |
AWG 20…AWG 14
|
|
cable entry |
Cable gland 9…13 mm
|
|
contacts type and composition |
1 C/O
|
|
product specific application |
30 bar overpressure
|
|
pressure switch type of operation |
Regulation between 2 thresholds
|
|
electrical circuit type |
Control circuit
|
|
scale type |
Adjustable differential
|
|
local display |
With
|
|
adjustable range of switching point on rising pressure |
0.3…2.5 bar
|
|
adjustable range of switching point on falling pressure |
0.2…2.28 bar
|
|
possible differential maximum at high setting |
1.45 bar
|
|
maximum permissible accidental pressure |
37.5 bar
|
|
destruction pressure |
67.5 bar
|
|
pressure actuator |
Diaphragm
|
|
materials in contact with fluid |
Steel
FPM, FKM |
|
enclosure material |
Zinc alloy
|
|
[In] rated current |
3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
possible differential minimum at low setting |
0.1 bar (- 0.03 bar, + 0.05 bar)
|
|
---|---|---|
possible differential minimum at high setting |
0.22 bar (- 0.03 bar, + 0.05 bar)
|
|
maximum permissible pressure – per cycle |
30 bar
|
|
terminal block type |
4 terminals
|
|
maximum operating rate |
120 cyc/mn
|
|
repeat accuracy |
2 %
|
|
[Ui] rated insulation voltage |
300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
|
[Uimp] rated impulse withstand voltage |
6 kV EN/IEC 60947-1
|
|
auxiliary contacts operation |
Snap action
|
|
contacts material |
Silver contacts
|
|
maximum resistance across terminals |
25 mOhm conforming to IEC 255-7 category 3
25 mOhm conforming to NF C 93-050 method A |
|
short-circuit protection |
10 A cartridge fuse, type gG (gl)
|
|
mechanical durability |
2000000 cycles
|
|
setting |
External
|
|
height |
162 mm
|
|
depth |
110 mm
|
|
width |
110 mm
|
|
net weight |
3.5 kg
|
standards |
UL 508
CE EN/IEC 60947-5-1 CSA C22.2 No 14 |
|
---|---|---|
product certifications |
UL
LROS (Lloyds register of shipping) CCC BV EAC CSA |
|
protective treatment |
TC standard version
|
|
ambient air temperature for operation |
-25…70 °C
|
|
ambient air temperature for storage |
-40…70 °C
|
|
operating position |
Any position
|
|
vibration resistance |
4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
|
|
shock resistance |
50 gn conforming to IEC 60068-2-27
|
|
electrical shock protection class |
Class I conforming to IEC 1140
Class I conforming to IEC 536 Class I conforming to NF C 20-030 |
|
IP degree of protection |
IP66 conforming to EN/IEC 60529
|
Unit Type of Package 1 |
PCE
|
|
---|---|---|
Unit Type of Package 2 |
S04
|
Sustainable offer status |
Green Premium product
|
|
---|---|---|
EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
Mercury free |
Yes
|
|
RoHS exemption information | ||
Environmental Disclosure |
Warranty |
18 months
|
---|
