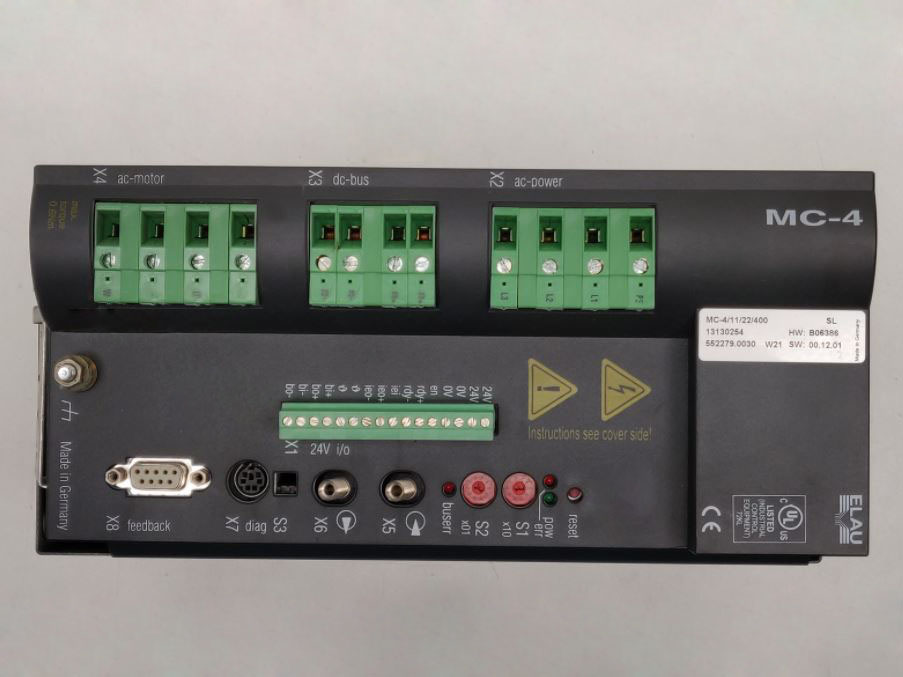

PACDRIVE Mc-4/11/10/400 Elau Schneider Electric
The highlights of the MC-4 motor controller
- State-of-the-art technology
- Worldwide voltage range
- Integrated power supply unit
- Max. 34.5 / 69 kVA
- Automatic motor identification
- Minimal size
- Safety input Inverter Enable
- 250 % overload
- Integrated sercos interface
- Reduced variety of types
Technical data
Type | MC-4/01 | MC-4/03 | MC-4/05 |
Rated current | 1,5 Aeff | 3 Aeff | 5 Aeff |
Peak current | 3,75 Aeff | 7,5 Aeff | 12.5 Aeff |
Rated power | 1,1 kVA | 2,1 kVA | 1.9 kVA |
Width | 69 mm | 69 mm | 69 mm |
Type | MC-4/10 | MC-4/22 | MC-4/50 |
Rated current | 10 Aeff | 22 Aeff | 50 Aeff |
Peak current | 25 Aeff | 55 Aeff | 125 Aeff |
Rated power | 6.9 kVA | 15,2 kVA | 34,5 kVA |
Width | 69 mm | 124 mm | 312 mm |
Supply voltage | 3 AC 342 … 528 V/ MC-4/05: 1 AC 230 V |
Supply frequency | 48 … 62 Hz |
Control voltage | DC 20 … 30 V |
Bleeder resistance | integrated |
Peak torque | 5,2 Nm |
Power supply and power filter | integrated |
Safety funtions* | Safe Stop 1 (SS1)** and Safe Torque Off (STO)** via Inverter Enable |
Motion bus | sercos interface |
Depth | 230 / 260 mm with connector plugs |
Height | 240 / 310 mm with fixtures |
Protection class | IP 20 |
Ambient temperature | +5° C … + 45° C; (…+55° C) |
Excess voltage category | KIII, T2 (DIN VDE 0110) |
Excess voltage resistance | class 1 (DIN VDE 0160) |
Degree of radio interference | class A EN 55011 / EN 61800-3 |
Certifications | CE / UL 7 cUL |
Một số Model sản phẩm khác
ABLE VW3E1117R030
ALIMENTATORE PS5 VPM02D20AA00
C400/10/1/1/1/00
MC-4/11/10/400
MC-4/11/22/400 VDM01D22ALO0
BM-4/10 VPM030000000
VIL3AB11AN3AA00
VW3E3057R030
SH30702P02F2000
SM-140/30/210/P1/45/S1/B0
VCA09AAAA0AA00 C600/10/1/1/1/00
VCA09AAAA0AA00
VDM01D10AA00
VIA0702D11A0000
VIA0702D12A0000
VIA1002C01F0000
VPM02D20AA00
VW3E3057R030
Tudongvina.com cung cấp tất cả các loại Bộ điều khiển động cơ trên thị trường. Liên hệ để tìm và nhận báo giá PACDRIVE Mc-4/11/10/400 Elau Schneider Electric bạn đang cần.
