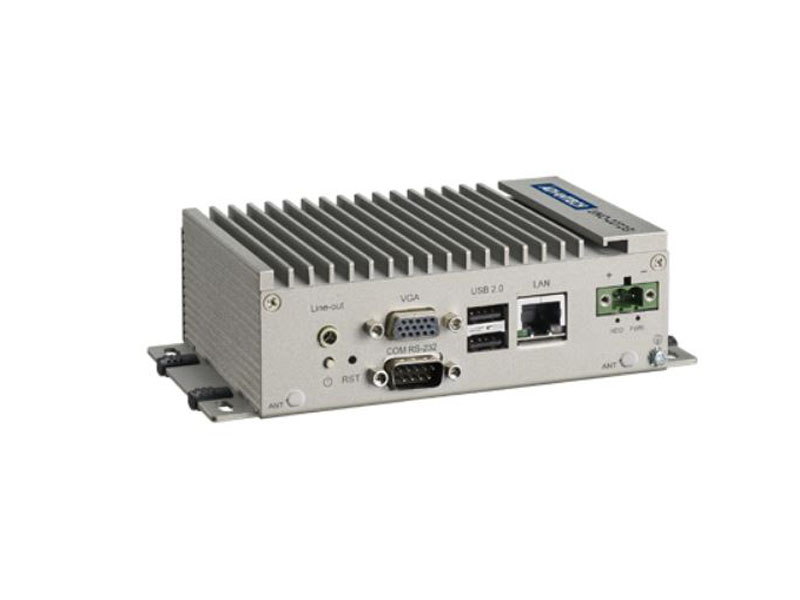

Máy tính tự động hóa UNO-2272G
Model: UNO-2272G
UNO-2272G Intel® Atom™ Palm-Size Automation Computer with 1 x GbE, 2 x mPCIe, VGA/HDMI của hãng Advantech hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. UNO-2272G được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh,…
Tính năng của sản phẩm:
- Intel® Atom™ N2800/J1900 Processors with 2GB DDR3/DDR3L Memory
- 1 x GbE, 3 x USB 2.0/3.0, 1 x COM, 1 x VGA or HDMI, Audio
- Compact with Fanless Design
- Rubber Stopper Design with Captive Screw
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
- Supports MRAM by iDoor Technology
Thông số kỹ thuật của Máy tính tự động hóa UNO-2272G:
General
- Mounting: Stand, Wall, VESA (Optional), Din-rail (Optional)
- Power Consumption: 14W (Typical), 45.3W (Max)
- Certifications: CE, FCC, UL, CCC, BSMI
- Enclosure: Aluminum Housing
- Weight (Net): 0.8kg(1.76Ibs)
- OS Support: Microsoft® Windows 7, Windows 10, Advantech Linux
- Power Requirement: 24VDC ± 20%
- Form factor: Palm Size
- Dimensions ( W x D x H ):157 x 88 x 50mm (6.2″x 3.5″x 2.0″)
System Hardware
- Memory: Built-in 2GB DDR3L 1333 MHz up to 8GB
- Storage: 1 x half-size mSATA
- Watchdog Timer: Programmable 256 levels timer interval, from 1 to 255
- Expansion: 2 Full-size mPCIe
- Processor: Intel Celeron Quad Core J1900 2.0 GHz
- BIOS: AMI EFI64 Mbit
- System Chip: Intel Atom SoC integrated
- Graphics Engine: Intel® HD Graphics
- Ethernet: Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az
- LED Indicators: LEDs for Power, HDD, LAN (Active,Status)
I/O Interface
- Serial Ports: 1 x RS-232 (RS-422/485 by BIOS option), DB9, 50~115.2kbps
- Audio: Line-out
- USB Port: 2 x USB 2.0 and 1 x USB 3.0
- Displays: 1 x HDMI, supports 1920 x 1080 @ 60Hz
- Power Connector: 1x 2 Pins, Terminal Block
- LAN Ports: 1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Environment
- Relative Humidity: 10 ~ 95% @ 40°C non-condensing
- Ingress Protection: IP40
- Vibration Protection: Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
- Shock Protection: Operating, IEC 60068-2-27, 50G, half sine, 11ms
- Operating Temperature: -10 ~ 55°C (14~131) @ 5 ~ 85% RH with 0.7 m/s airflow
- Storage Temperature: -40 ~ 85°C ( -40 ~ 185°F)
