Thiết bị đo tĩnh điện ACL 395 Staticide

Product Features

• Accuracy: ± 0.25 decade in the dissipative range
• TestVoltage: 10 volts at values less than 10⁶
• 100 volts at values of 10⁶ and greater
• Resistivity limits: 10³ – 10¹² ohms per square
• Resistance limits (when using external probes): 10³ – 10¹² ohms
• LED colors: green 10³ – 10⁶, yellow 3 x 10⁶ – 10⁹, orange 3 x 10⁹ – 10¹⁰, red 10¹ – 10¹²
• Conforms to ASTM D257
• Includes calibration certificate

Product Description

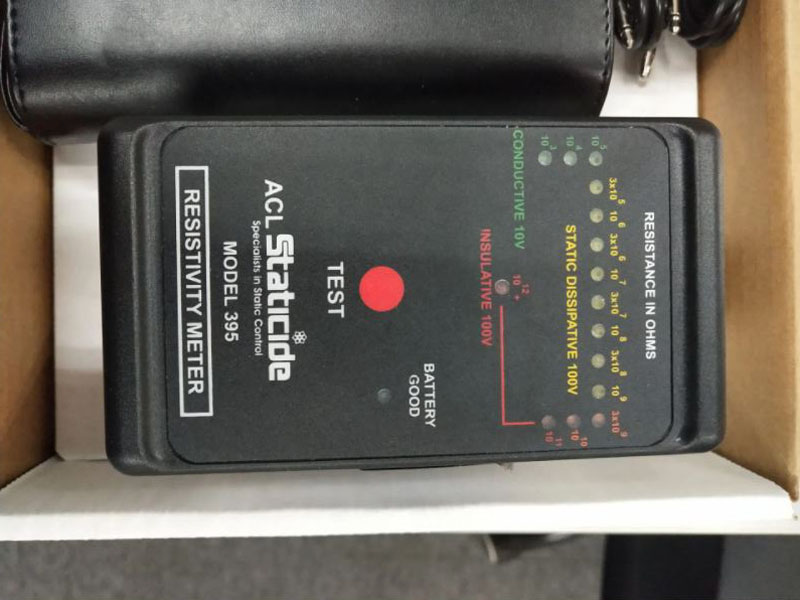

The ACL 395 meter features circuitry that produces higher accuracy than other pocket-sized meters. This allows for the same advantages as megohmmeters, but at an economical price. Colored “warning” stage alerts the auditor to material approaching the upper end of the dissipative scale, so that it can be designated as nearly out of specification. Features conductive rubber rails for the best contact possible. This yields higher accuracy when assessing packaging and assembly lines using the parallel resistivity probe method ASTM D257. Optional 5-lb probes (part no. 480-694) are used, this meter will comply with IEC 61340-4-1, ANSI/ESDA S4.1 & ANSI/ESDA S7.1 for RTG and RTT testing, making it ideal for auditing in ESD production areas and laboratories.
